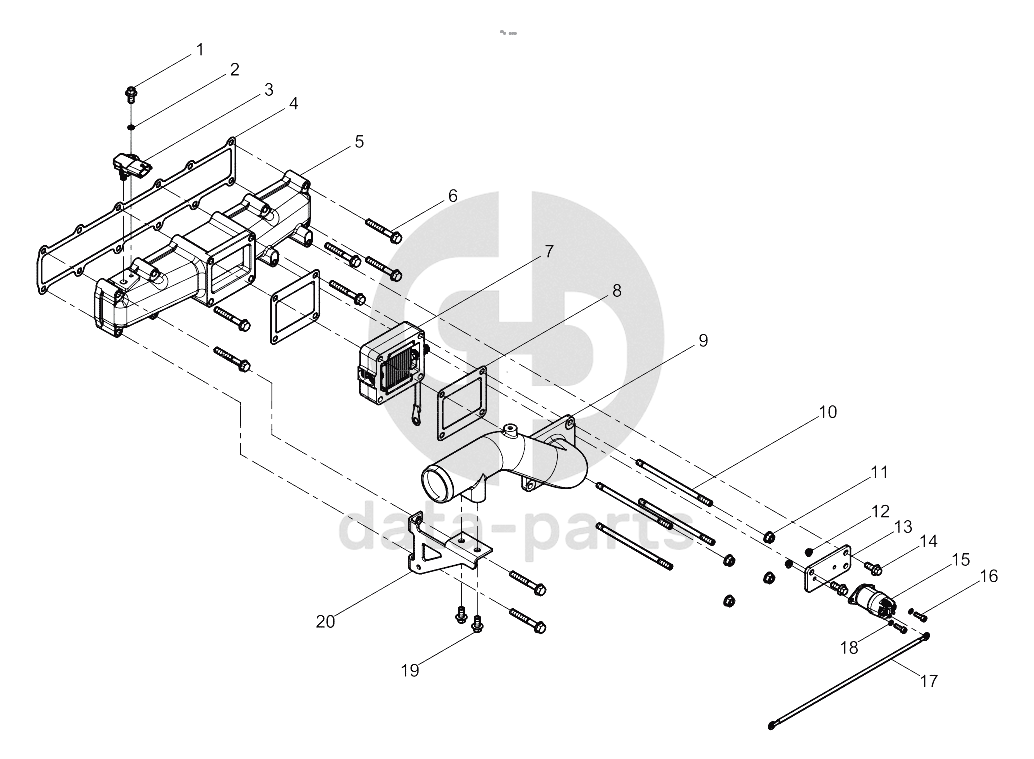

Intake Manifold Group WP4.1 DH4.1K0320

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
100%
1
90003802331
Hexagon Head Bolt
2
90014350003
Шайба пружинная
3
2220035
Boost pressure and temperature sensor
4
1000848366
Intake Manifold Gasket
5
2105110189
Intake Manifold
6
90011400036
Hexagon Flange Bolt
8
1000852061
Intake Manifold Gasket
9
1000827009
Intake Connecting Pipe
10
2102110161
Double End Stud
11
90012290001
Hexagon Flange Nut
12
90012290008
Hexagon Flange Nut
13
1000465563
Bracket
14
90011430016
Toothed bolt
15
612630080076
Реле
16
90013050033
Inner Hexagon Socket Head Cap Screw
17
612600090661
Preheating Harness
18
90014350002
Spring washer
19
9000000068
Hexagon Flange Bolt
20
2102110184
Compressor intake duct bracket
