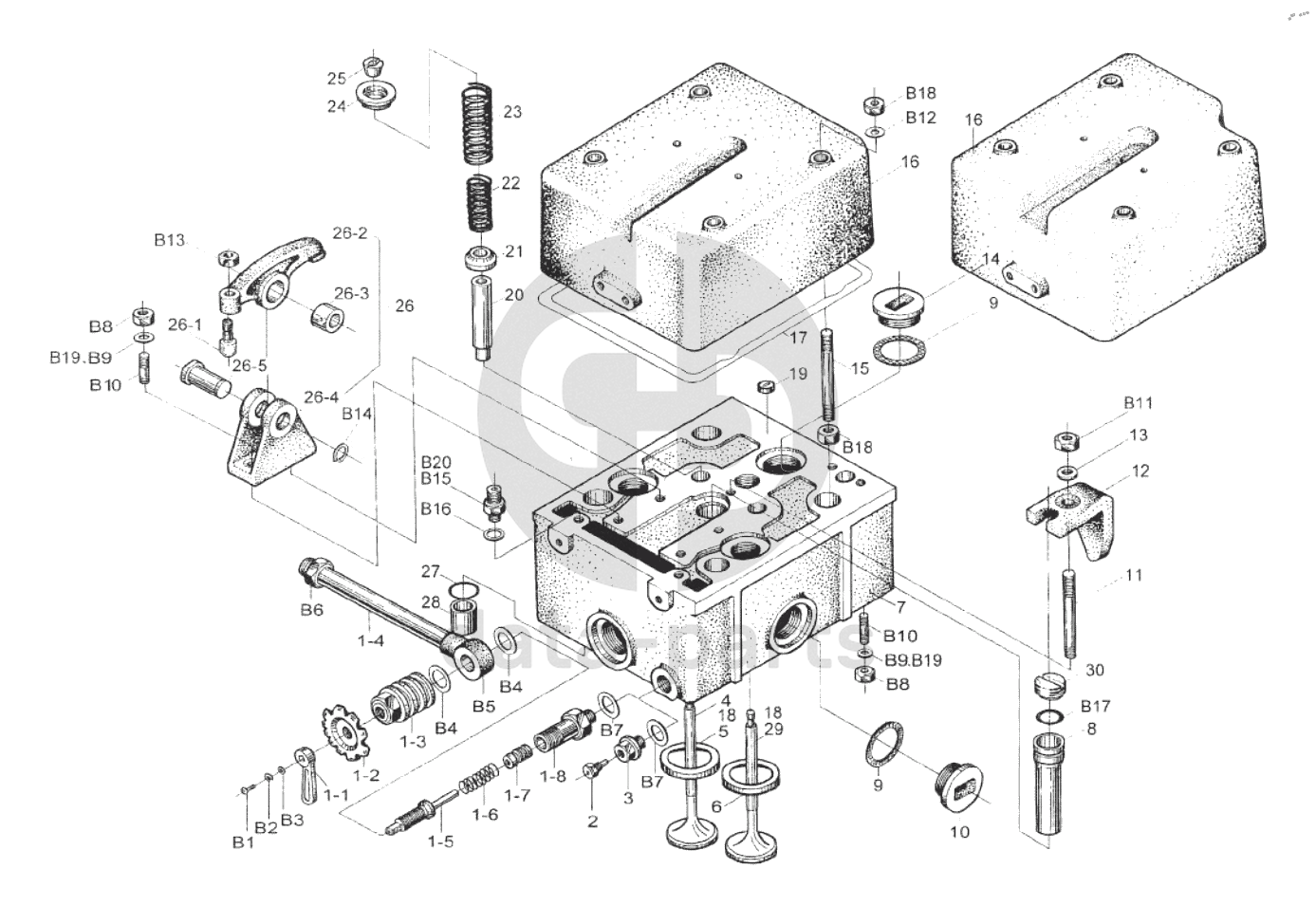

Cylinder Head Assembly R6160

1
160А.03.05
Air charging valve sub-assy
1-1
160А.03.50.01А
Handle
1-2
160A.03.50.05
Handwheel
1-3
160А.03.50.06
Valve cover
1-4
160A.03.50.11
Air charging pipe
1-5
160А.03.50.02
Threaded stem
1-6
160Ф.03.50.07
Spring
1-7
160А.03.50.09
Air charging pipe
1-8
160А.03.50.08
Valve body
2
160A.03.51
Venling screw
3
160А.03.49
Venling screw seal
4
160Z.03.166A
Intake valve
5
160Z.03.165A
Intake valve insert
5
160А.03.147
Intake valve insert
6
160A.03.148
Intake valve inserl
6
160А.03.163A
Intake valve insert
7
160Z.03.183A
Cylinder Head
7
160A.03.45D
Cylinder Head
8
160Z.03.151D
Injector sleeve
9
616003010002
Washer
9
616003010001
Washer
10
160Z.03.154
Plug
11
160Z.03.84A
Stud
12
160Z.03.05A
Injector clamp
13
160 A.03.04
Washer
14
160A.03.105
Plug
15
160Z.03.188
Stud
15
160 A.03.132A
Stud
16
160Z.03.157B
Cylinder head cover
16
160A.03.144A
Cylinder head cover
17
160Z.03.158
Casket of Cylinder cover
17
160 A.03.146
Casket of Cylinder cover
18
160A.03.27
Air intake and exhaust hole
19
160A.03.149
Plug
19
160A.03.09
Plug
20
160А.03.112
Valve, guide
20
160Z.03.4A
Valve guide
21
160A.03.106
Valve, spring seal
22
160А.03.24
Inner valve spring
22
160Z.03.161
Inner valve spring
23
160A.03.23
Outer valve spring
23
160Z.03.159
Ouler valve spring
24
160А.03.29
Valve spring seal
25
160А.03.25
Splil valve lock
26
160Z.03.20
Rocker arm sub-assy
26
160А.03.10А
Roekerarm sub-assy
26-1
160Z.03.20.01
Adjusting screw
26-2
160Z.03.20.02
Roeker arm
26-2
160A.03.10.08
Rocker arm
26-3
160A.03.10.07
Roeker arm shaft bush
26-4
160Z.03.10.05
Rocker arm shaft bracket
26-5
160А.03.10.06
Rocker arm shall
27
160А.03.21
Rubber ring
28
160A.03.143
Valve guide
29
616003030162
Exhaust valve
29
160Z.03.162A
Exhaust valve
30
160Z.03.186A
Clamping seat
B1
GB/T67-Zn-D
Slotted pan head serew
B2
GB/T93
Spring washer
B3
GB/T97-1-140HV-Zn-D
Washer
B4
160A.13.42
Copper-asbestos washer
B5
160A.13.34
Pipe connection
B6
160A.13.33
Pipe connection
B7
160A.13.35
Copper-asbestos washer
B8
GB/T6170-HY
Hexagon mil
B9
GB/T93
Spring washer
B10
GB/T898-8-8-H-Y
Double end slud
B11
GB/T6170-HY
Hexagon mil
B12
GB/T97-1-140HV-Zn-D
Washer
B13
GB/T 6173-HY
Plat hexagon nut
B16
160A.13.08
Copper-asbestos washer
В14
22 GB/T894-1
Snap ring
В15
6JB/T6013
Connection
В17
GGB3452-1
O-rubber seal ring
В18
M12GB/T6170-8-HY
Hexagon nut
В19
Q40110
Washer
В20
160A.13.62
Connector
