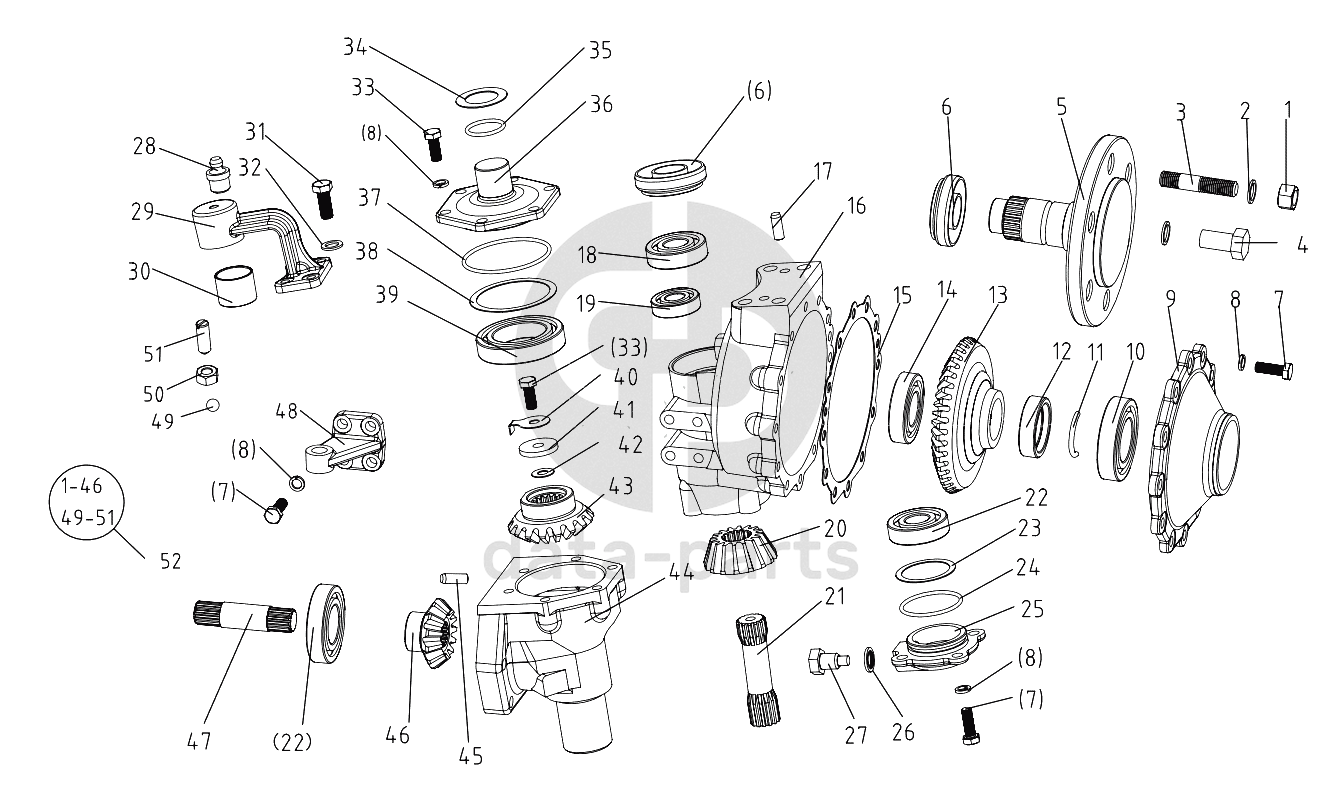

Front Wheel Drive Axle (Left Side-Slowdown) 404G2

1
GB/T6176-2000-M18x1.5
Hex. nut M18x1.5
2
GB/T93-1987-18
Spring lock washer 18
3
304.31.179
Double screw bolt
4
GB/T5786-2000-M18x1.5x35
hex. head bolt M18x1.5x35
5
304.31.101-3
Drive shaft
6
404-9.31.111
Oil-seal MC50x72x12/15
7
GB/T5783-2000-M10x30
Hex. head bolt M10x30
8
GB/T93-1987-10
Spring lock washer 10
9
304.31.104-3
Drive shaft cover
10
GB/T276-1994-6209
Ball bearing 6209
11
304.31.102-2
Fixing ring of drive shaft
12
304.31.103-2
Drive shaft sleeve
13
304.31.132-3
Driven bevel gear of final drive
14
GB/T276-1994-6207
Ball bearing 6207
15
304.31.105-1
Gasket for drive shaft cover
16
304.31.216-5
Right final drive housing
17
GB/T119.2-2000-A10x24
Straight pin A10x24
18
GB/T276-1994-61910
Ball bearing 61910
19
GB/T297-1994-32909
Tapered roller bearing 32909
20
304.31.131-3
Driving bevel gear of final drive
21
304.31.107-4
Upright shaft
22
GB/T276-1994-6208
Ball bearing 208
23
850-2.39.112/113/114
Adjusting shims
24
GB/T3452.1-1992-75x2.65
O-ring seal 75x2.65
25
304.31.137-3
Lower bearing cover
26
JB-FT-CU-16
Copper washer 16
27
200.38.024
Oil drain plug
28
JB/T7940.1-1995-M8x1
Grease cup M8x1
29
304.31.215-4
Right linking arm
30
304.31.202-1
Steering arm bushing
31
GB/T5783-2000-M12x40
Hex. head bolt M12x40
32
GB/T93-1987-12
Spring lock washer 12
33
GB/T5783-2000-M10x25
Hex. head bolt M10x25
34
304.31.249/250/251/252
Steering arm adusting shim
35
GB/T3452.1-1992-34.5x2.65
O-ring seal 34.5x2.65
36
304.31.111-4
Upper bearing cover
37
GB/T3452.1-1992-85x2.65
O-ring seal 85x2.65
38
304.31.133
Adjusting shims for the first drive
39
GB/T276-1994-6011
Ball bearing 6011
40
304.31.138
Lock washer
41
304.31.110-1
Blocking ring of upright shaft
42
304.31.112-2
Adjusting shims
43
304.31.113-1
Driven bevel gear of the first drive
44
304.31.108-4
Upright shaft housing
45
GB/T119.2-2000-A10x20
Straight pin A10x20
46
304.31.129-1
Driving bevel gear of the first drive
47
304.31.114-2
Half shaft
48
404B.31.111
Right steering trapezoid arm
49
GB/T308-2002-8.7312G200b
Ball 8.7312G200b
50
GB/T6171-2000-M10x1
Fine thread hex. nut M10x1
51
504.31.144
Set screw M10x1
52
Right final drive housing assembly
Right final drive housing assembly
