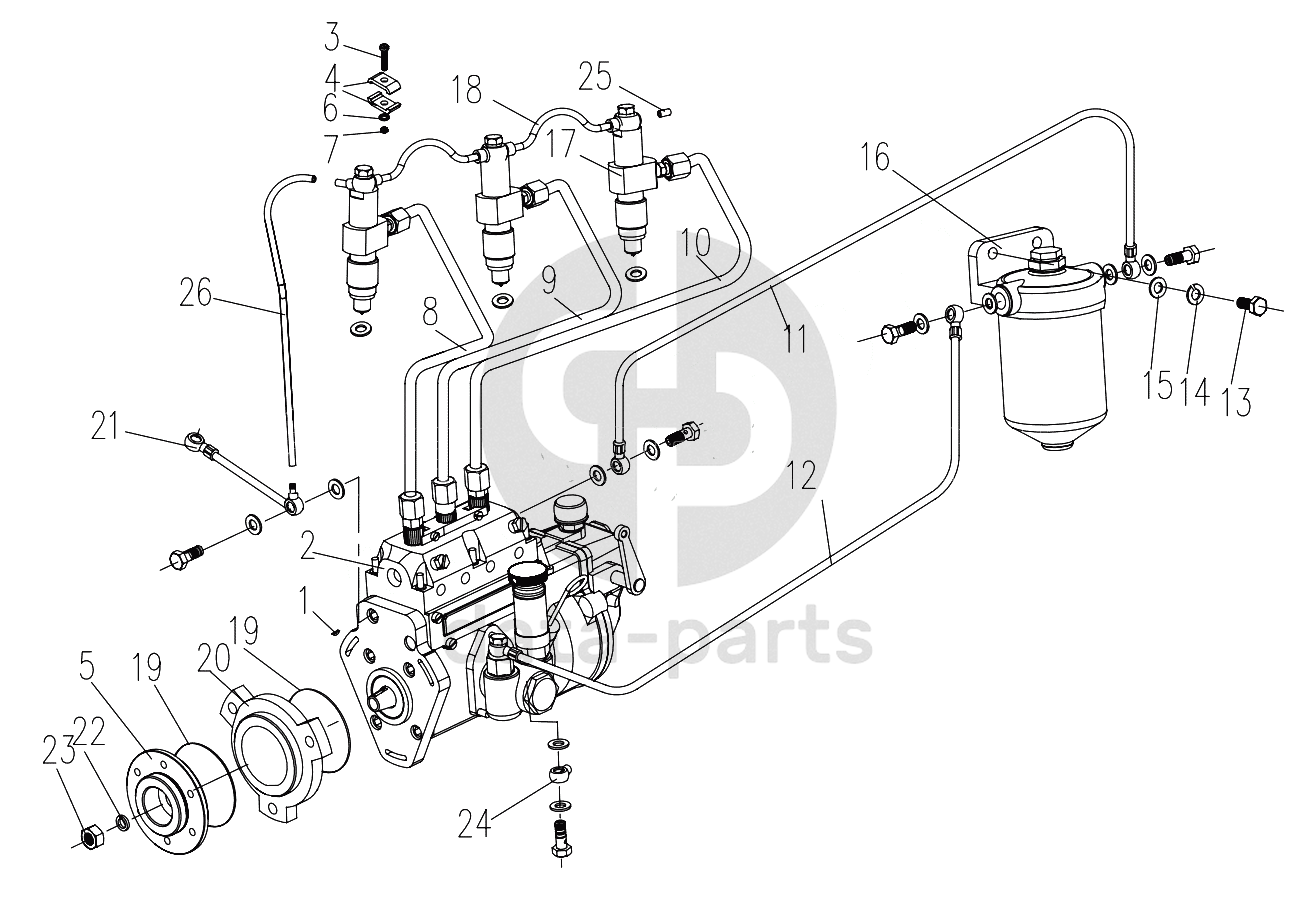

Fuel System 304G2

100%
1
GB/T1099.1-2007-3x16
Woodruff 3x16
2
ZN390TE-18001C
Injection pump
3
GB/T65-2000-M5x20
Cylindrical screw M5x20
4
N85-14001
Pipe clip (A)
5
N85-18005
Injection pump timing gear adapter
6
GB/T859-1987-5
Spring washer 5
7
GB/T6170-2000-M5
Nut M5
8
4L68-141000
1st cylinder high pressure fuel pipe
9
4L68-142000
2nd cylinder high pressure fuel pipe
10
4L68-143000
3rd cylinder high pressure fuel pipe
11
N390T-15300E
Fuel filter outlet pipe
12
N485-15400 (A)
Fuel feed pump outlet pipe
13
GB/T5782-2000-M8x25
Bolt M8x25
14
GB/T859-1987-8
Washer 8
15
GB/T848-2002-8
Washer 8
16
N485-28000 (A)
Fuel filter
17
ZN390TE-25000A
Injector
18
4L68-150002-6x2x110
Fuel return pipe 6x2x110
19
GB/T3452.1-1992-77.6x2.65
Seal ring 77.6x2.65
20
N85-18003A
Injection pump end cover
21
4L68-151000 (D)-1
Injector fuel return pipe
22
GB/T93-1987-12
Spring lock washer 12
23
GB/T6170-2000-M12
Hex. nut M12
24
N85-15500A
Fuel feed pump inlet connection
25
4L68-150001-3
Injector fuel return cover
26
4L68-150003
Fuel return main pipe
