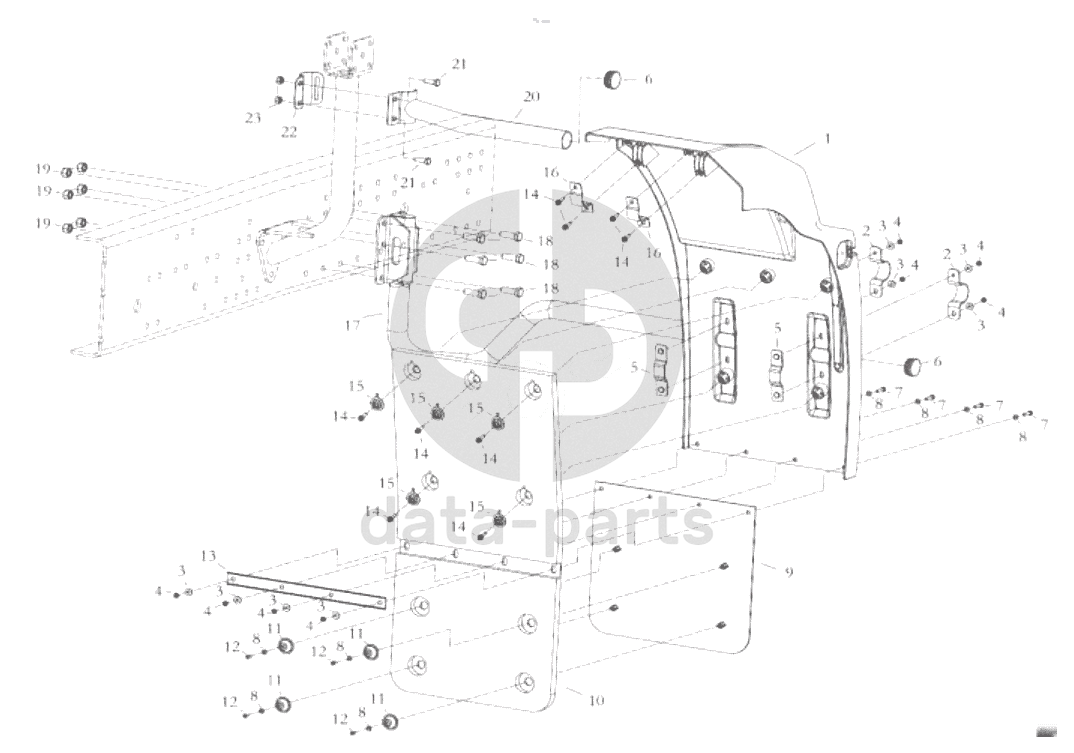

LEFT WING SUB-BOARD ON THE REAR SIDE OF THE CAB Shacman SX42584V324

1
2
2
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
5
5
6
6
7
7
7
7
8
8
8
8
8
8
8
8
9
10
11
11
11
11
12
12
12
12
13
14
14
14
14
14
14
14
15
15
15
15
15
16
16
17
18
18
18
19
19
19
21
21
23
100%
1
DZ14251230021
Left rear fender
2
DZ14251230066
Clamp assembly
5
DZ14251230068
Internal compression
6
81.96002.0416
Пробка
7
Q150B0625
Hex. Screw
8
Q40106
Шайба 8х16х2-SТ-А3С
9
DZ14251230023
Mud curtain
10
DZ14251230025
Splash-proof
11
DZ14251230029
Tableting
12
Q2714816
Cross Recess Head Screw
13
DZ14251230024
Mud retaining leather fixing bracket
14
Q2706322A
Hexagonal flange surface self-tapping nails
15
DZ14251230051
Tableting
16
DZ14251230056
Clip
17
DZ14251230100
Left rear fender bracket assembly
18
Q150B1440
Hex bolt
19
Q334141
Type all-metal hexagonal lock nut
23
Q334101
Type all-metal hexagonal lock nut
