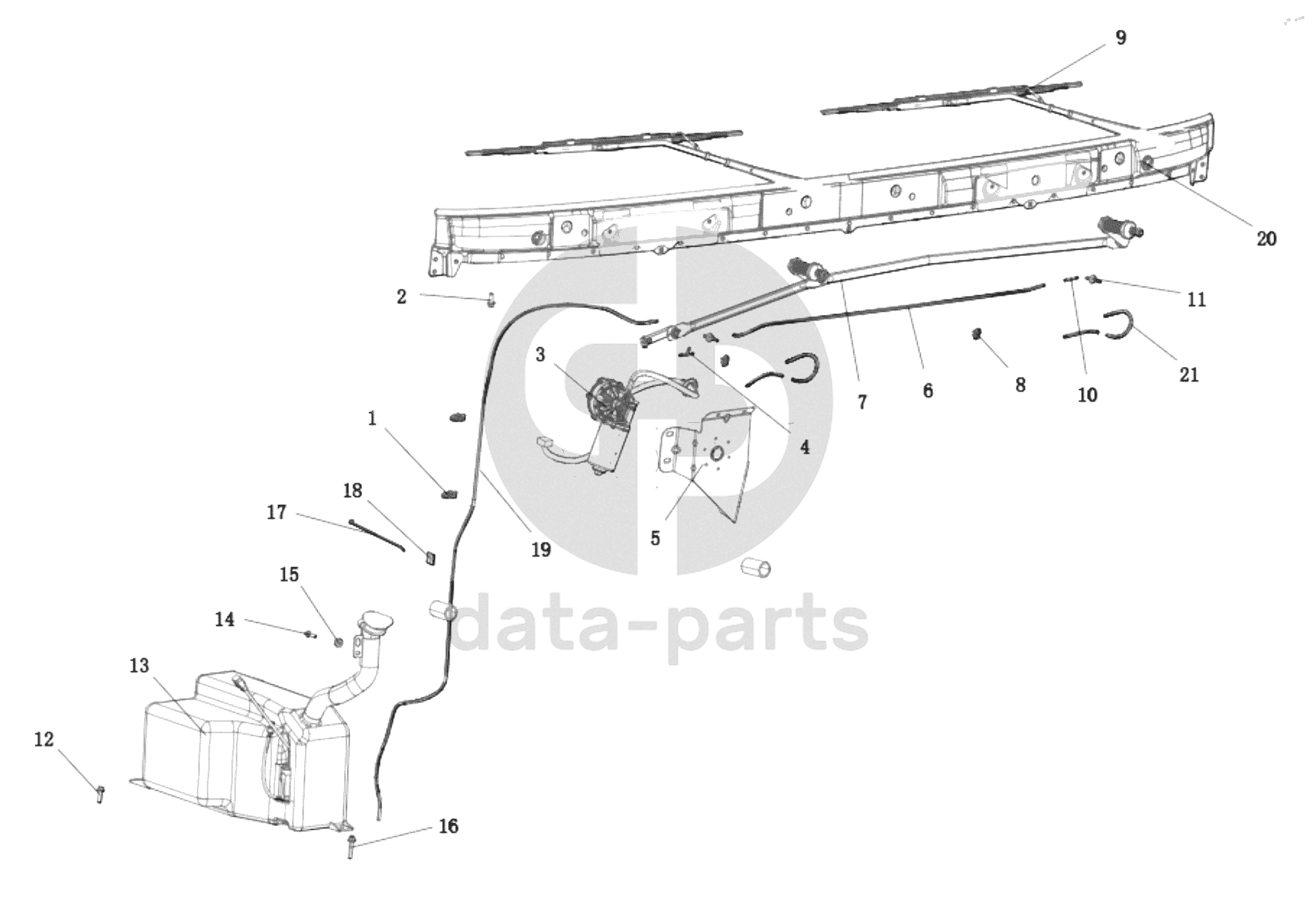

DC14251740001 GLASS CLEANING SYSTEM Shacman SX331853386 (X5000)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
100%
1
81.97470.0073
Plastic fastening tape
2
Q1840820T1F31
Hexagon flange bolt
3
DZ14251740010
Wiper motor
4
DZ14251740040
Tee
5
DZ14251740011
Wiper motor bracket
6
DZ14251740032
Hose II
7
DZ14251740012
Wiper linkage assembly
8
DZ14251740038
Rope II
9
DZ14251740015
Wiper arm assembly
10
DZ14251740035
Distributor I
11
DZ14251740036
Distributor II
12
Q1840825T1F31
Hexagon flange bolt
13
DZ14251740090
Washing kettle assembly/left mounted
14
Q1840620T1F31
Hexagon flange bolt
15
DZ14251743033
Washing pot cushion block 7mm
16
Q1840840T1F31
Hexagon flange bolt
17
DZ93189777161
Ordinary narrow tie
18
DZ9X259090010
Single pipe clamp/ d six
19
DZ14251740031
Hose I
20
DZ14251150150
Wiper bracket assembly
21
DZ14251740033
Hose III
