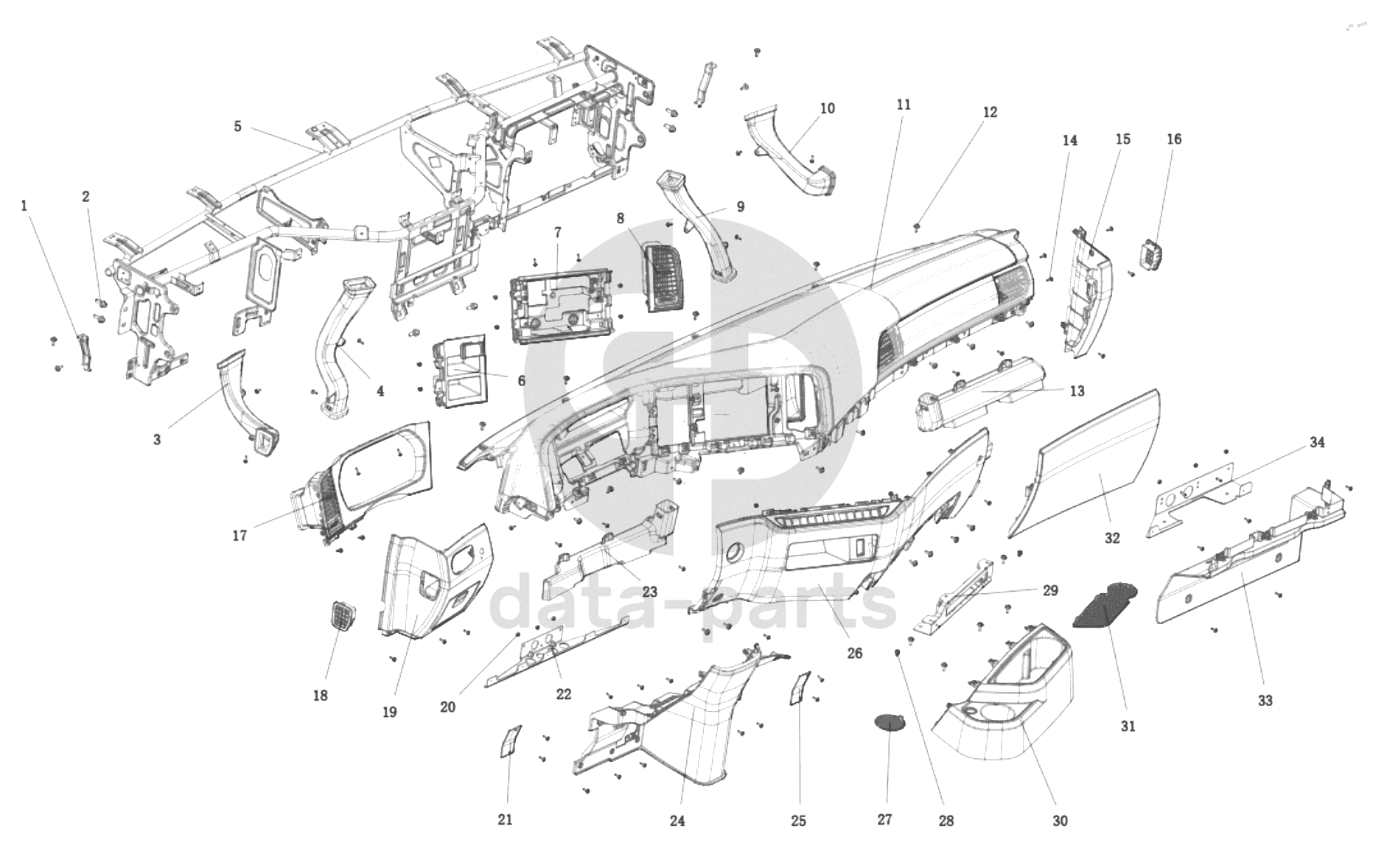

DC14251160073 INSTRUMENT PANEL Shacman SX331853386 (X5000)

100%
1
DZ14251164231
Install the upper bracket
2
Q1841025T1F31
Hexagon flange bolt
3
DZ14251164023
Left defrosting duct
4
DZ14251164025
On the left foot blowing duct
5
DZ14251164230
Pipe beam assembly
6
DZ14251164055
Small storage box
7
DZ14251164059
Intermediate panel body/cassette player
8
DZ14251164080
Driver's right air vent assembly
9
DZ14251164026
On the right foot blowing duct
10
DZ14251164024
Right defrosting duct
11
DZ14251164010
Instrument panel assembly
12
SXQ230B0620F31L
Cross recessed pan head screw and plain washer assembly
13
DZ14251164028
Under the right foot blowing duct
14
Q221B4219F60
Self tapping screw
15
DZ14251164076
Right end cover body/gray
16
DZ14251164077
Right defrost air outlet/gray
17
DZ14251164040
Combination instrument cover assembly
18
DZ14251164072
Left defrost air outlet/gray
19
DZ14251164167
Left knee guard assembly/glonass/gray
20
Q340B06F60
Hexagon nut
21
DZ14251164172
Clutch pedal cover
22
DZ14251164124
Left knee guard bracket
23
DZ14251164027
Under the left foot blowing duct
24
DZ14251164170
Left lower guard body
25
DZ14251164173
Brake pedal cover
26
DZ14251164166
Instrument panel lower body assembly/glonass/gray
27
DZ14251164224
Cup holder rubber pad
28
06.13169.0012
Заклепка
29
DZ14251164222
Auxiliary instrument panel mounting bracket
30
DZ14251164078
Auxiliary instrument panel body/gray
31
DZ14251164223
Auxiliary instrument panel rubber pad
32
DZ14251164074
Ecu access cover assembly/gray
33
DZ14251164075
Right lower guard body/gray
34
DZ14251160410
Right instrument panel lower bracket assembly
