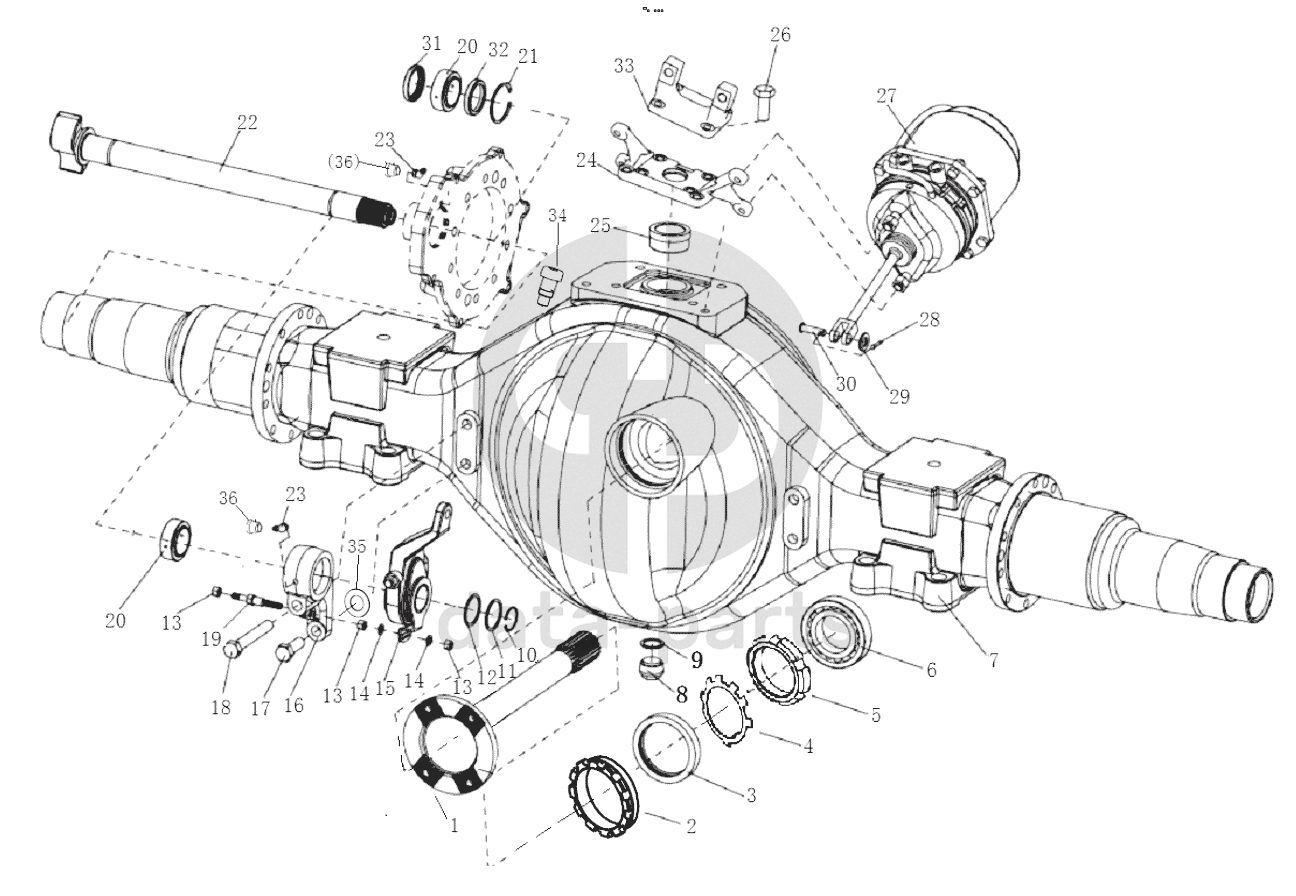

HD469 SINGLE-STAGE BRIDGE MIDDLE BRIDGE BRIDGE SHELL Shacman F3000

1
DZ9114320905
Perforation shaft
2
81.90685.0053
Adjusting nut
3
HD95129320010
Axle seal ring
4
Q41408
Hex bolt
5
DZ95149320053
Shim
6
DZ90149326012
Ball bearing
7
DZ90129330089
Axle case assembly(469)
7
DZ90129330083
Axle case assembly(469)
7
DZ90129330004
Axle case assembly(469)
7
DZ9114331960
Axle case assembly(469)
8
158600330015
Magnetic plug assembly
9
Q72336
Шайба уплотнительная
10
190003933116
Circlip for axle
11
108000320046
Adjusting washer
11
108000320030
Adjusting washer
11
108000320029
Adjusting washer
11
108000320028
Adjusting washer
12
188000340022
Washer
14
Q40108
Шайба А8,4х16х1,6-200НV-МАN183-В4
15
199000340057
Gap adjusting arm assembly
15
199000340056
Gap adjusting arm assembly
15
DZ9100340046
Brake adjuster
15
DZ9100340045
Brake adjuster
16
DZ9112340046
(right)
17
Q151B1640TF2
Болт
18
Q151B16105TF2
Bolt
19
81.91020.0318
Stud
20
188000340017
Bush
21
190003933300
Circlip for axle
22
DZ9112340117
Brake camshaft
22
DZ9112340118
Brake camshaft
23
06.38070.0102
Grease nozzle
24
DZ9114340179
Bracket
24
81.43240.0112
Bracket
24
DZ90129340055
Bracket
24
DZ9114340169
Bracket
25
81.93001.0328
Sleeve
26
Q1811645TF2
Bolt
26
06.02812.1115
Bolt
26
81.90030.0135
Bolt
27
DZ9112360309
Spring brake air-chamber
27
DZ9112360331
Spring brake air-chamber
28
Q5004022
Шплинт
30
190003903661
Pin axle
31
188000340023
O style packing ring
32
188000440010
Washer
33
DZ90129340051
Bracket for front rear axle
33
DZ9112330730
Bracket for front rear axle
34
199000330006
Air vent assembly
35
DZ9112340331
Adjuster shim
35
DZ9112340332
Adjuster shim
35
DZ9112340334
Adjuster shim
35
DZ9112340335
Adjuster shim
35
DZ9112340330
Adjuster shim
35
DZ9112340336
Adjuster shim
35
DZ9112340333
Adjuster shim
36
81.96002.0191
Dirt guard
